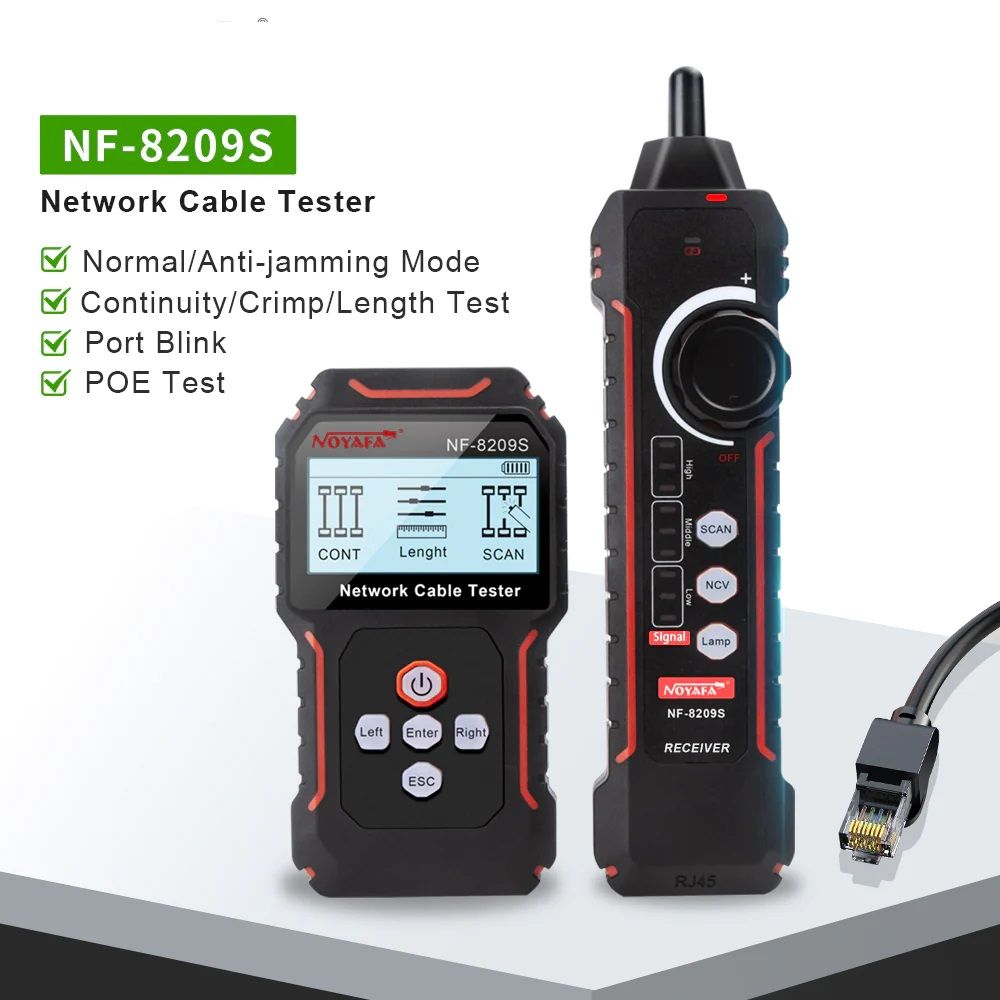

NOYAFA NF-8209S Network Cable Tester Wire Tracer Set

NOYAFA NF-8209S Network Cable Tester Wire Tracer Set

Description:

• Multifunction Network Diagnostic Tool: The NF-8209S is a professional-grade device designed for testing and tracing Ethernet network cables. It combines cable testing, fault detection, wire locating and PoE verification in one portable toolset.
• Supports Multiple Cable Types: It works with UTP and STP cables such as CAT5, CAT5e, CAT6 and other RJ45-based connections commonly used in networking installations.
• Cable Continuity & Fault Detection: The tester can detect wiring errors including open circuits, shorts, crossed pairs, reversed or split pairs, helping ensure cables are wired correctly and reliably.
• Accurate Cable Length Measurement: It can measure cable length and locate breakpoints or faults along the cable route — ideal for troubleshooting long cable runs in offices or buildings.
• Cable Tracing & Identification: With tone/scan functionality, it helps quickly locate and identify specific cables among bundles or inside walls, ceilings or patch panels. Digital and analog tracing modes enhance accuracy in noisy environments.
• PoE Testing Capability: The unit can test PoE power supply information such as voltage, power mode and standard (IEEE 802.3af / 802.3at). It also features a port-flash function to identify which switch port the cable is connected to.
• Non-Contact Voltage (NCV) Detection: Safety is enhanced with built-in AC voltage sensing to avoid working with live cables unknowingly.
• Clear LCD Display & User-Friendly Interface: The bright display shows measurement values, wiring diagrams and fault types clearly, making it easy to interpret results quickly.

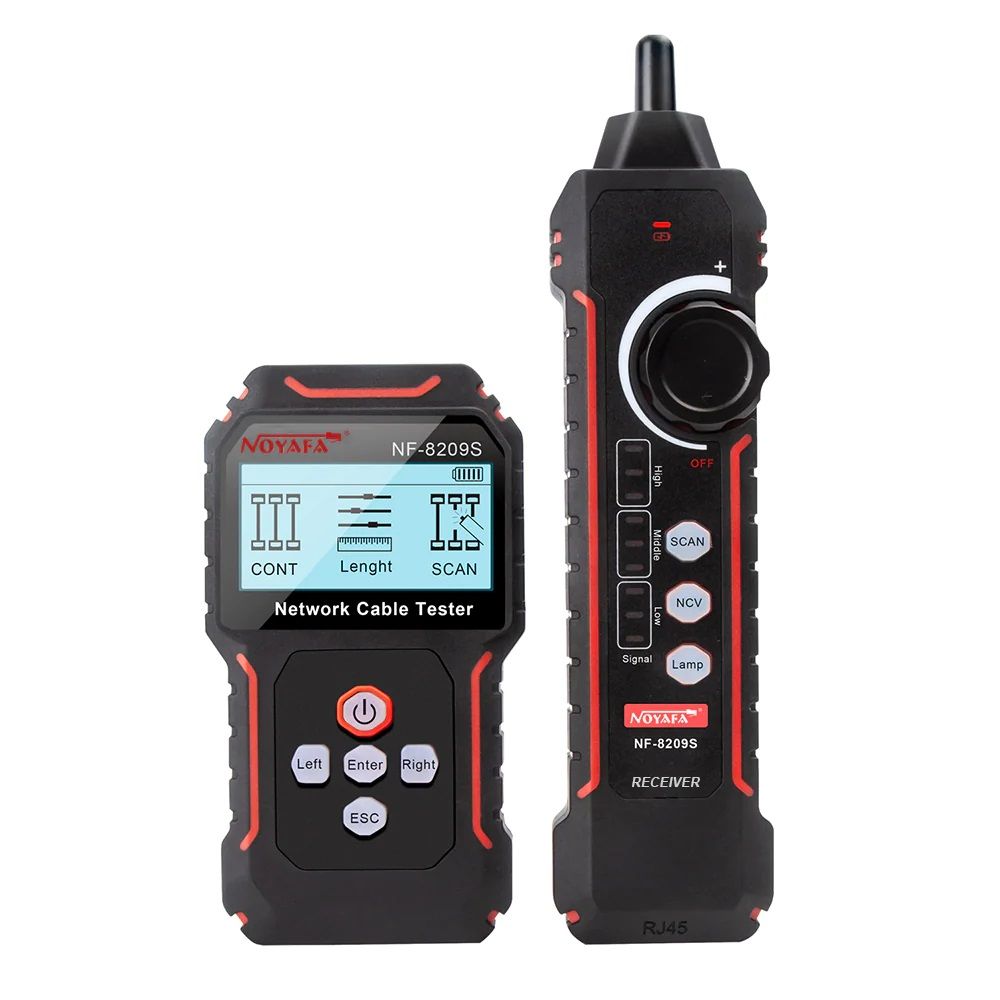

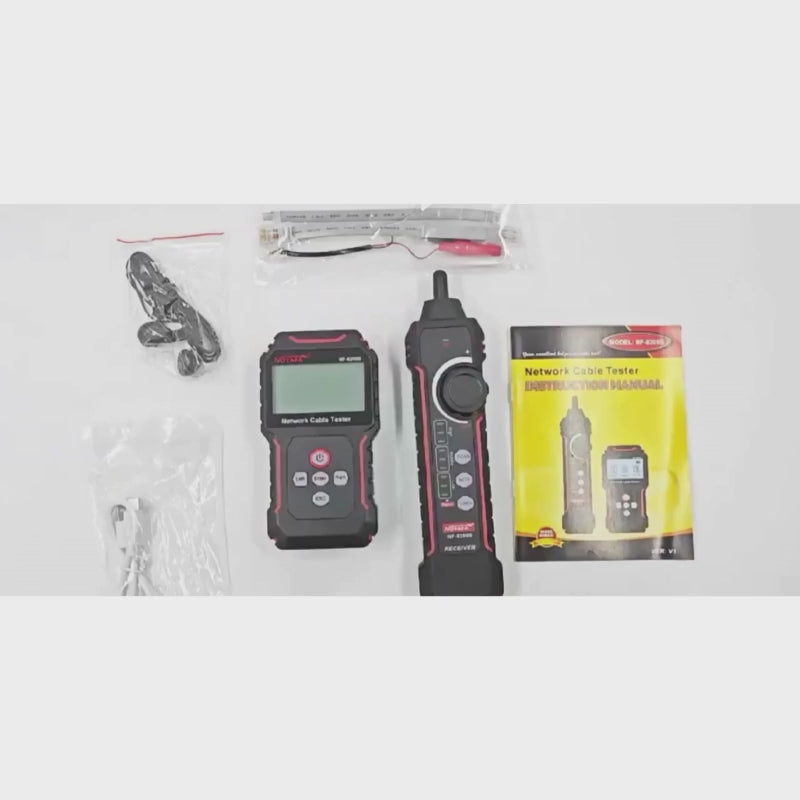

• Portable & Rechargeable: Lightweight design, rechargeable battery and included receiver/emitter units make it suitable for field technicians, network engineers, electricians and IT installers.

Product Features

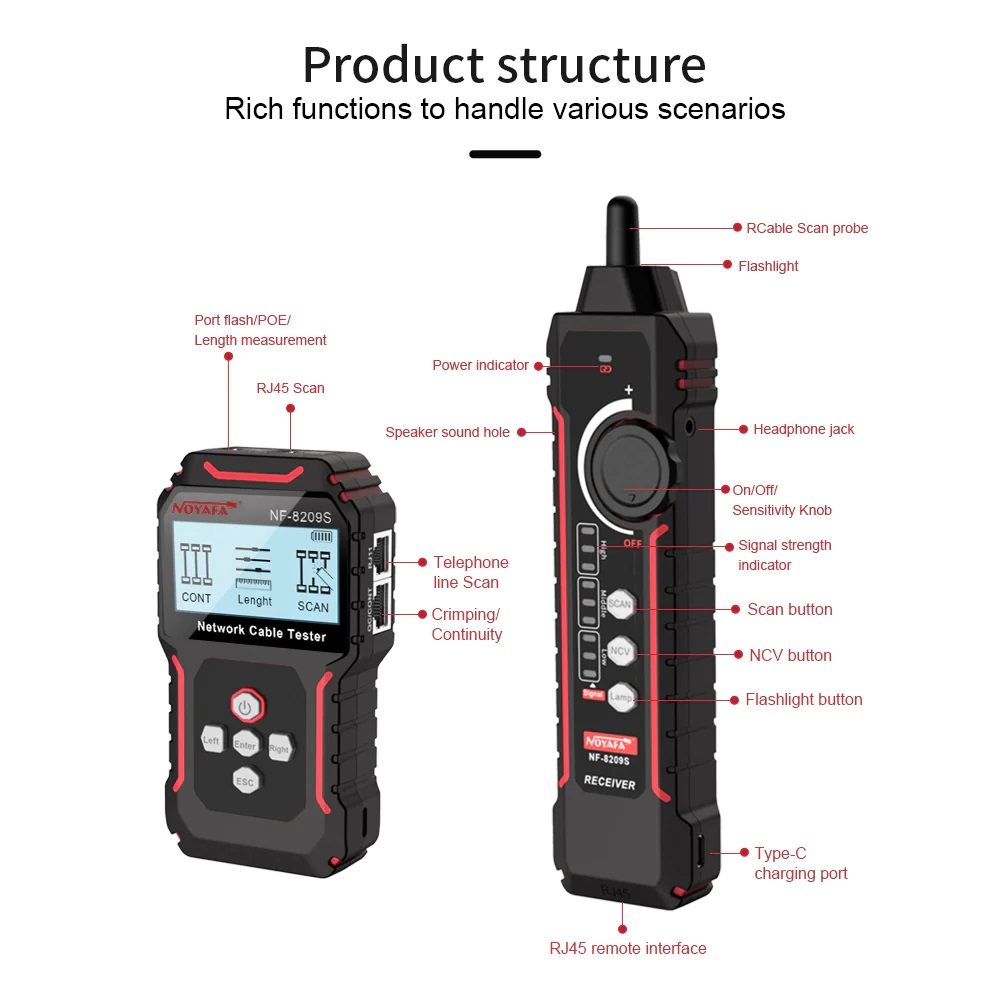

• Two scanning modes, analog and digital, can be switched at any time, with an anti-jamming probe, adjustable sensitivity, tone generator, and LED light, so that the receiver can quickly and accurately locate the target cable in a wide variety of complex environments.

• Analyze CAT5 CAT6 (STP & UTP) line faults, such as normal, open circuit, short circuit, and cross, and see the results instantly.

• Measure the network cable in the range of 2.5m-500m.

• Identify the network port by the blinking port light on the Hub or Switch. Available to 10M/100M/1000M Hub/ switch.

• Identify which pins are providing power and detect how much voltage, and identify which type of PSE (AT/AF standard).

• Non-Contact Voltage (NCV) tester detect AC voltage (70V-1000V) without disrupting the electrical system, providing you with maximum safety and convenience.

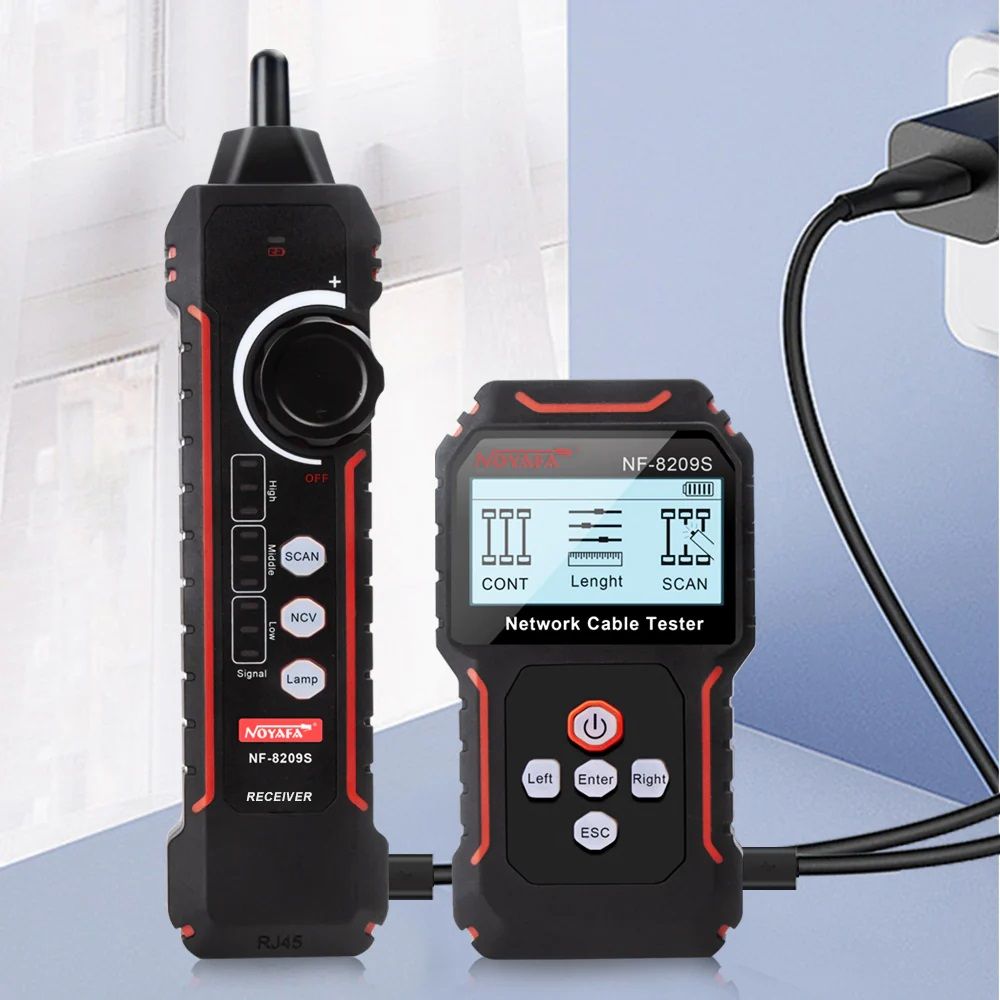

• The network tester can be recharged using a USB-C cable, and the lithium battery provides long-lasting power.
