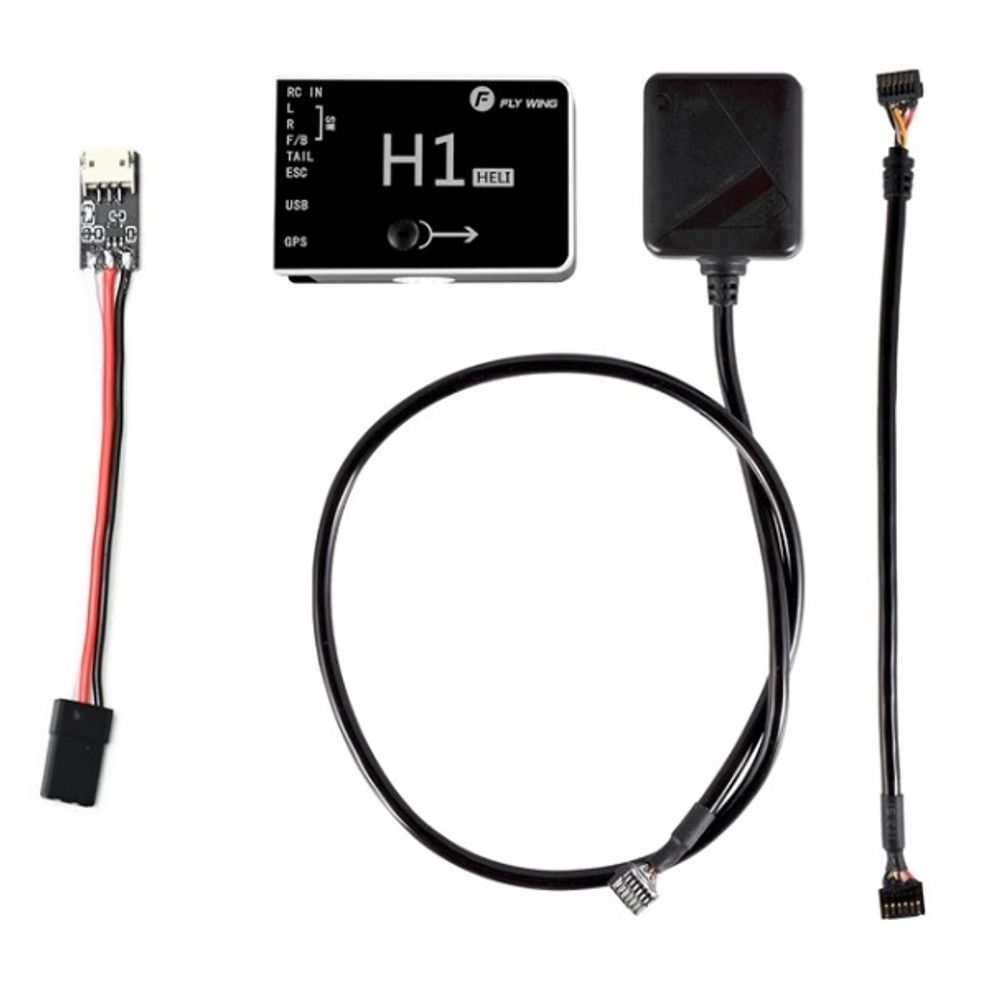

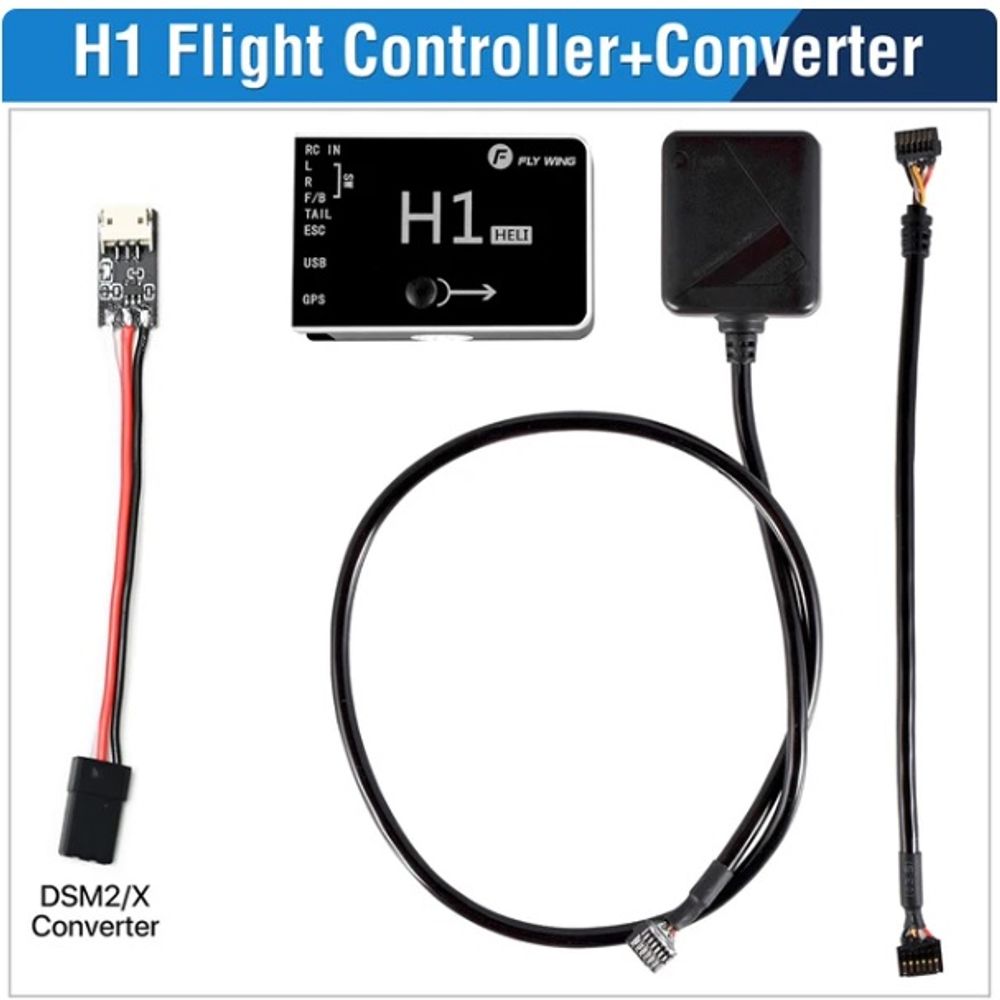

FLY Wing 6CH H1 Flight Controller + Converter

FLY Wing 6CH H1 Flight Controller + Converter

Description:

1.RC Controller Application: Suitable for built-in mainstream helicopter FW450L ALIGN T-REX SAB GAUI Not PIXHAWK FC Support a variety of receiver types, receiver input support ppm, s.bus and other mainstream single line mode, automatic identification Flight Mode: GPS mode/3D mode/Home mode
2.Flight Control System Software: Ultra-simple assistant software. Support direct setting of helicopter speed. Simpler swashplate leveling, just drag the progress bar to adjust the servo. More accurate positive and negative pitch adjustment positive, negative, zero pitch independent setting
3.Dual RC GPS Module: GPS + GLONASS M8N high-end chip, fast startup speed and search star. Antenna precisely matched LNA low loss circuit, signal stability. Dual-mode GPS, more satellites and positioning accuracy
4. Material of The RC Controller: Adopt FPC gold-plated, PCB to ensure accurate data signals. CNC metal flight control shell: good electromagnetic shielding performance
5.TYPE-C Port RC Gyro: Easy connection. Provide greater supply current to ensure data transmission stability. Type-c port, regardless of positive and negative insertion

Product Features:

• Item name: H1 Helicopter Flight Controller

• Helicopter type: HR3 Flybarless Swashplate

• Battery type: 3S,4S, 6S Lipo battery, 125 do not support low voltage

• Receiver type: S.bus/i.bus/w.bus PPM SUMD HD 08

• Rated system power: 2W

• Rated peak power: 4 W

• Flight Mode: GPS mode/3D mode/Home mode

• Voltage input range: 6.0-8.4V,ESC BEC supply power can't use 5V BEC
